Product function definition
Intelligent Solutions for Circuit Breaker
You can manage devices easily by integrating with energy management PaaS systems such as apartments and commercial lighting systems Directly connect devices to Tuya Cloud or connect sub-devices to Tuya Cloud through gateway devices. We offer diversified network modules to address your needs, such as NB-IoT, Wi-Fi, Zigbee, and more. Our easy-of-use app panels help you deliver excellent user experience. Smart solutions for circuit breaker cover cloud connection, app panels, cloud platform, and scenario PaaS.
Scenes
Apartment
Hotel

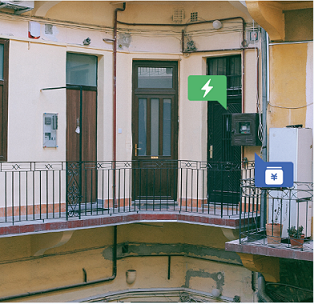

Rental room
Park lighting

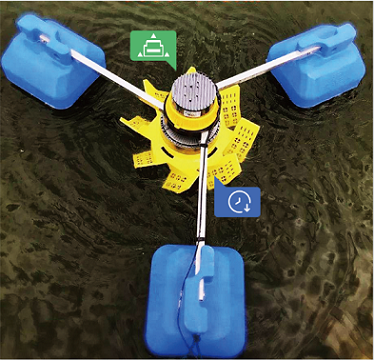

Livestock or poultry farm

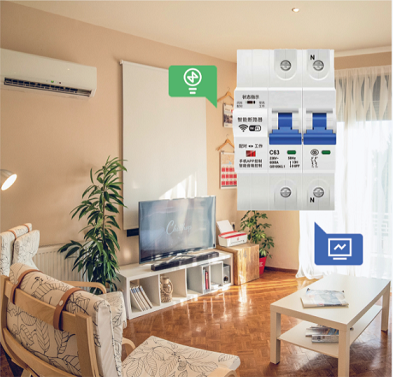

Apartment
You can connect a smart circuit breaker to the input power source of your apartment to implement electricity metering and real-time status monitoring while protecting your personal safety and property security.
Solution advantages
Different product combinations
1. Connect smart circuit breaker to Tuya Cloud through long-range wireless network modules.
2. Connect sub-devices of smart circuit breaker (Tuya protocols) to Tuya Cloud through gateway devices.
3. Connect sub-devices (private protocols) to Tuya Cloud through private gateway and Tuya wireless network modules or upstream SDK.
Flexible integration with Tuya Cloud
1. Provide diversified wireless network modules, such as NB-IoT, Wi-Fi, Wi-Fi + Bluetooth, Zigbee, and SUB-G. You can connect devices to Tuya Cloud through MCU serial communication with modules, with diverse choices of communication protocols.
2. If you have strong technology development capabilities, you can use Tuya's wireless chip to integrate with our SDK and then connect to Tuya Cloud.
3. Embed SDK in Linux or Android systems operated on the smart devices, and connect to Tuya Cloud through Ethernet or cellular networks.
Powerful and flexible cloud platforms
1. Modular architecture: Based on the cloud platform data architectures combined basic IoT PaaS and industry PaaS, the solutions implement separate management of the raw data and scenario data.
2. Flexible interfaces: Data of smart devices across categories are tagged. Therefore, you can easily switch between interfaces.
3. Powerful algorithms: Tuya's unique AI algorithms help improve the power distribution and management efficiency in different scenarios.
Multi-industry PaaS support
Tuya provides smart solutions for different industries, including PaaS solutions for different scenarios such as apartments, hotels, commercial lighting, communities, rental rooms, and new energy. As long as there is electricity, you will need smart circuit breakers to implement power distribution management and protection. Based on Tuya's standard protocols, the smart circuit breakers support parallel control and management with app panels and PaaS systems.
Solution functions
Energy usage monitoring
Smart circuit breakers support high-precision measurement of electrical data such as electricity usage, voltage, current, power, and frequency. Based on visualized data, you can easily implement scenario-specific electricity metering and power-grid quality check.
Data query
The Tuya Cloud Platform manages and stores electricity data regularly reported by smart circuit breakers. You can view the hourly electricity usage data for the recent week or the daily electricity usage data for the recent year in the app or the PaaS system.
Remote control and protection
You can remotely control the opening or closing of the smart circuit breaker in the app panel or the PaaS system. This feature is especially useful when the smart circuit breakers and the controlled devices are deployed outdoors. It allows you to easily control these devices and view their working status at home.
Threshold alarm
The app panel supports up to 17 exception alarms, enabling different manufacturers to implement differentiated product functions. When an exception occurs, the circuit breaker sends an alarm to the app, which then pushes a notification to remind you to promptly deal with the exception. You can configure actions for the circuit breaker to take upon the occurrence of some exceptions.
Smart linkage
Based on the smart linkage function of the Tuya Cloud Platform, you can configure the related smart linkage functions for your smart devices before the smart circuit breaker sends an overload alarm. When the circuit breaker sends an overload alarm, the less-important electrical appliances will be "notified" and stop working.
Get started
Communication capability
NB-Iot、Wi-Fi、Wi-Fi+BLE，ZIGBEE
Development mode
SoC plug and play solution
Recommendmodule
NB-IoT：NM1-CT,NM1-GL,NE1,
Wi-Fi: WR4,TYWE3S
Gateway Wi-Fi：WRG1
Wi-Fi+BLE: WB3S，WB3S-IPEX
ZIGBEE: ZS3L,
Recommend control panel
Total 6 pcs panels for select
Power consumption type
Normal or low power consumption
Development steps
1
2
App interactive interface selection
3
Hardware development and debugging
4
Configuration on Cloud
5
Trial production
Module solution
NM1-CT（NB-IoT）
芯片：MT2625SC 尺寸：17.7mm (L)×15.8mm (W) ×2.4mm (H)，external antenna，cover in China and India
operating temperature：-40°C ~ +85°C Application: circuit breakers, electric meters, water meters, gas meters, heat meters, inverters and other products.
MoreNM1-GL（NB-IoT）
芯片：MT2625SC 尺寸：17.7mm (L)×15.8mm (W) ×2.4mm (H)，external antenna，for Global use
operating temperature：-40°C ~ +85°C
Application: circuit breakers, electric meters, water meters, gas meters, heat meters, inverters and other products
MoreWR4（Wi-Fi）
Chip：RTL8710BN Size：13.8mm (W)×15.5(L) ×3.4mm (H) PCB antenna，
operating temperature：-20℃ to 85℃
Application: home appliance control panel, electrician, lighting
MoreTYWE3S（Wi-Fi）
Chip：ESP32 Size：16mm (W)×24(L) ×3.3mm (H) PCB antenna，
operating temperature：-20℃ to 85℃
Application: home appliance control panel, electrician, lighting.
MoreWB3S (WiFi&BT )
Chip：BK7231T Size：16×24×3.5mm operating temperature：-20℃ to 85℃，PCB antenna
Application: home appliance control panel, electrician, lighting.
MoreWB3S-IPEX(WiFi&BT )
Chip：BK7231T Size：16×24×3.5mm operating temperature：-20℃ to 85℃，IPEX antenna;
Application: home appliance control panel, electrician, lighting.
MoreZS3L( ZIGBEE）
Chip：EFR32MG21A020F768IM32-B Size：16×24×2.8mm
operating temperature：-40℃ to 105℃，IPEX antenna
Application: home appliance control panel, electrician, lighting.
Control panel solution
